CO2 se espalha na África

  O CO 2 surge como a escolha natural como refrigerante para várias aplicações , desde aplicações de varejo de alimentos à refrigeração industrial. Esta tendência é confirmada em todo o mundo, e a África segue rapidamente as últimas tendências em refrigeração. O país líder em instalações na África é até agora a África do Sul, tanto em instalações subcríticas quanto transcríticas, onde, graças ao excelente design dos trocadores de calor HC e da linha Dorin CD , o CO 2 é capaz de funcionar com eficiência mesmo em alta temperatura ambiente. A HC Heat-Exchangers escolhe os compressores Dorin para cobrir o varejo de supermercados, ajudando na transição para refrigerantes naturais, melhorando a eficiência do sistema em comparação com o antigo sistema HFC equivalente. Oferecendo 116kW MT @ -10°C e 48kW LT @ -35°C o HC Kronos está instalado em diversos supermercados nacionais, garantindo excelente desempenho em termos de COP e confiabilidade do sistema. O sistema é projetado com co

-80°C Evaporating Temperature

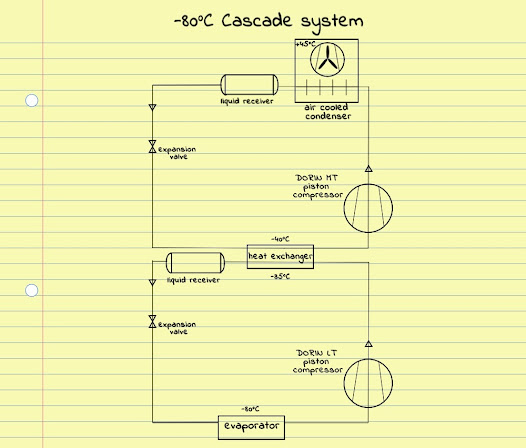

  There are several applications where the evaporating temperature needs to reach extremely low value, like pharmaceutical applications, climatic chambers, etc…  Due to the extremely high pressure ratio between condensing temperature and evaporating temperature, a cascade system is needed to divide the compression in two refrigeration systems where the gas in the LT cycle condensates in the evaporator of the MT cycle.  Main refrigerants used for this kind of application are R23 (GWP 14800) and R508B (GWP 13396), which compared to R23 offers a lower discharge temperature . Applications with these refrigerants are exclusively used below -50° and are exempted from the EU F-GAS.  Nevertheless, other low GWP options are under study to achieve eco-friendly solutions. R170 (GWP 6) is a promising gas with the constraint of the flammability since it is a hydrocarbon with A3 safety class . R469A (GWP 1357) is a mixture of R410A and R744 , A1 safety class , compatible with POE lubricant
